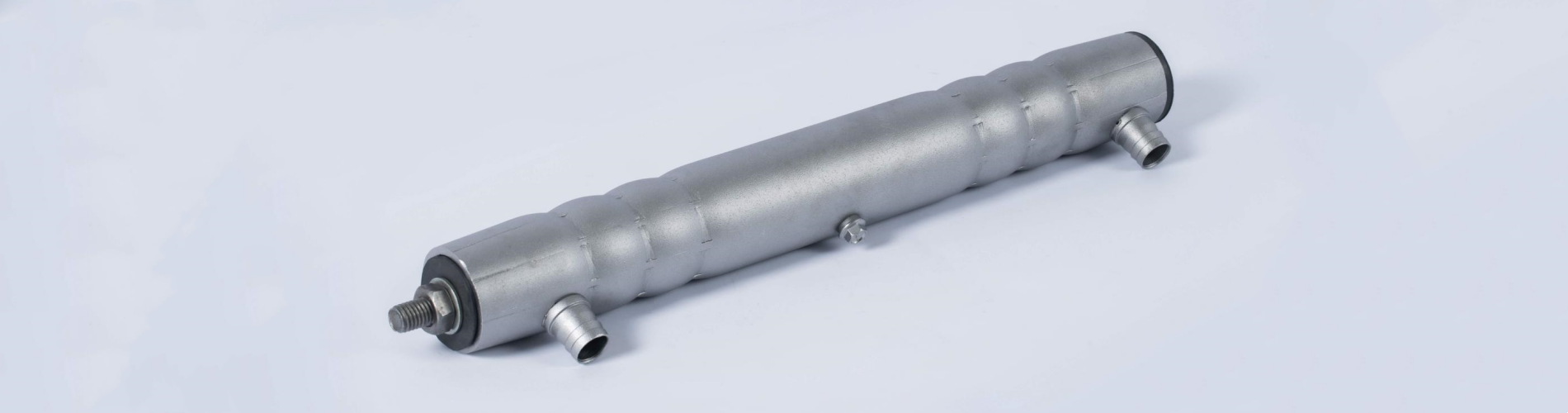

Full-grout Coupler

Looking for a better way to connect rebar and ensure load transfer continuity in your construction projects? Look no further than Grace

Grace


Product features

  • Our Full-grout Coupler is an innovative solution for connecting reinforcing bars in concrete structures. With its unique design, our coupler provides a full-length grout joint for enhanced structural integrity and durability. Our coupler offers a cost-effective, reliable, and efficient way to reinforce concrete structures of all sizes.
  • Our Full-grout Coupler simplifies the construction process by eliminating the need for complex reinforcement procedures, reducing construction time and costs. Our coupler is easy to install and requires minimal training, making it ideal for both small and large construction projects.
  • Our Full-grout Coupler is manufactured using high-quality materials to ensure its strength and durability. It is tested to meet or exceed industry standards and is backed by a reliable warranty. Our coupler is compatible with various rebar sizes and can be used in a variety of applications, including buildings, bridges, and tunnels.
  • Trust our Full-grout Coupler to provide a strong and reliable connection for your concrete structures.



100% machine test
100% pass tensile test
Of rebar/sleeve connection
Less than 40 sec
< 40 seconds
Machine cycle, including test
9 nuclear reactors
nuclear reactors
product support

Benefits

  • Every connection is proof-tested by a non-destructive tensile test during the extrusion cycle.
  • Standard parallel threads: no torque wrenching required and no risk of cross-threading.
  • Visual inspection of joints is sufficient.
  • Excellent fatigue performance thanks to rolled threads.
  • Compliant with OSHA regulations.

In the realm of precast construction, where precision meets strength, Grace presents the Full-Grout Coupler. Specifically designed to enhance precast concrete connections, this innovative coupler marries the threaded precision of Grace's JT system with the adaptability of a grout system.

Crafted as a one-piece design, the Grace Full-Grout Coupler streamlines application processes, providing construction professionals with unparalleled convenience. Engineered to bear exceptionally high bar loads, it stands as a bar break technology that surpasses industry standards.

Unique to Grace is the coupler's compatibility with Grace's proprietary 100MPa grout. This synergy transforms the coupler into a powerful solution, capable of withstanding rigorous construction demands. With one end designed to receive threaded rebar and the other offering the flexibility of a grout system, this dual functionality ensures versatility and precision in various precast concrete applications.

Grace takes pride in offering qualitative threading services, ensuring a hassle-free application process for contractors. Compatible with rebar diameters ranging from Ø12 to 40 mm and supporting ribbed or deformed steel with a grade of up to 500 MPa (60 ksi), the Grace Full-Grout Coupler is a testament to excellence.

Efficiency is paramount on the construction site. With non-shrink grout injected or poured into the cavity, connections are completed within seconds, providing a time-saving advantage in the fast-paced construction environment.

Whether it's horizontal or vertical connections, upper or lower components, the Grace Full-Grout Coupler excels, delivering a level of precision and flexibility that redefines precast connections. Elevate your projects with the innovation that defines Grace in the construction industry.

In conclusion, Grace Full-Grout Coupler emerges as a game-changer in precast construction, offering a seamless blend of Grace precision and the adaptability of a grout system. Explore the possibilities and elevate your precast connections with Grace."


Parameters Of Full Grouting Sleeve For Steel Bar Connection-Building Specification(mm)
Grout Sleeve Model
Bar Diameter (Φ)
Outer Diameter
Inner Diameter
Length (mm)
Grout Hole Center Position (mm)
Hole Location Of The Outflow Slurry (mm)
 On-site Construction Reinforcement Insertion Depth (mm)
Factory Installed Rebar Insertion Depth (mm)
GTQ4J-12
Φ12
39
28
245
28
220
96-116
96-116
GTJQ4-14
Φ14
41
30
275
30
245
112-132
112-132
GTJQ4-16
Φ16
43
32
310
35
280
128-148
128-148
GTJQ4-18
Φ18
46
35
340
35
310
144-164
144-164
GTJQ4-20
Φ20
48
37
370
40
340
160-180
160-180
GTJQ4-22
Φ22
50
39
405
40
375
176-196
176-196
GTJQ4-25
Φ25
52
39
450
40
420
200-220
200-220
GTJQ4-28
Φ28
61
48
500
40
460
224-244
224-244
GTJQ4-32
Φ32
66
50
565
40
525
256-278
256-278
GTJQ4-36
Φ36
78
60
630
40
590
288-308
288-308
GTJQ4-40
Φ40
89
70
700
40
660
320-340
320-340
Note: 1. The bottom dimension in the table is the value of the sleeve raw material that meets the mechanical performance
requirements of No. 45 steel in GB/T699-2015 (the measured yield strength and ultimate strength should not be less than J355-2015
Rebar Sleeve Grouting Connection Application Technology The standard specified in the regulations), the minimum size that can be
selected when the sleeve manufacturer has a good level of quality control. 2. The minimum size of the measured sleeve should be
measured in at least two directions, and the minimum value should be used for judgment. 3. The customer's special customized
sleeve must meet the mechanical performance parameters (strength requirements) of the sleeve as a premise, and the size can be
flexibly controlled.


Grout Coupler Series

Explore the excellence of Grace Grout Coupler series, including Semi Rebar Grouting Coupler, designed for seamless connections in precast concrete structures. From Half Grout to Full Grout options, Grace offers stability, reduced outer diameter, and cost-effective solutions. Optimize your precast connections with Grace's precision engineering.

Semi Rebar Grouting Coupler

Discover the features and benefits of our Semi Rebar Grouting Coupler, ideal for prefabricated walls and frame column connections. Compatible with HRB335, HRB400, and HRB500 ribbed steel bars, it spans a processing range from φ12 to φ40mm. The straight thread at one end simplifies the connection process, reducing length by 30%, saving construction space, and cutting costs.

Full Grout Rebar Coupler

Learn about the advantages of our Full Grout Rebar Coupler, perfect for horizontal beam connections and vertical main reinforcement connections. Compatible with HRB335, HRB400, and HRB500 ribbed steel bars, it spans a processing range from φ16 to φ40mm. The benefits include stable mechanical properties, reduced outer diameter suitable for thin prefabricated components, and a cost-effective connection form with a straight thread at one end

Having installed millions of connectors to date on some of the most technically demanding projects in China, Grace has proven itself to be the reliable, scalable and top performing Chinese rebar connector.
